AZW430UST

Compact Eco-Friendly Ultra Short Throw Projector

The AZW430UST is one of Optoma's most compact and hassle-free WXGA DuraCore laser ultra short throw projectors to date. Designed for maintenance-free continuous operation, this 4,300-lumen projector delivers powerful and eye catching image performance, perfect for meeting rooms and classrooms, the AZW430UST is designed to be used at any time of day.

Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials.

Installation and setup are simple with four corner adjustment and the added benefit of an external power supply, offering more reliability, portability and energy efficiency.

Designed with the environment in mind, the eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.³ In addition, the compact product and packaging size of the Optoma AZW430UST projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.¹

Geared for conference rooms, boardrooms, and other corporate spaces, the AZW430UST features an ultra short throw lens meaning it can project a 100” image from less than 0.5m away, avoiding shadows being cast across the screen from the presenter(s). For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.

Features

Ultra Short Throw

With an ultra-short throw lens, you can project an impressive image greater than 100” from less than a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.

Crafted for Excellence: Business and Education Solutions

Ultra Short Throw (UST) provides unmatched advantages in confined spaces. UST's ability to display large, clear images when situated near the screen eliminates shadow interferences during presentations in huddle rooms and classrooms.

Crafted for Excellence: Exhibitions and Advertising Solutions

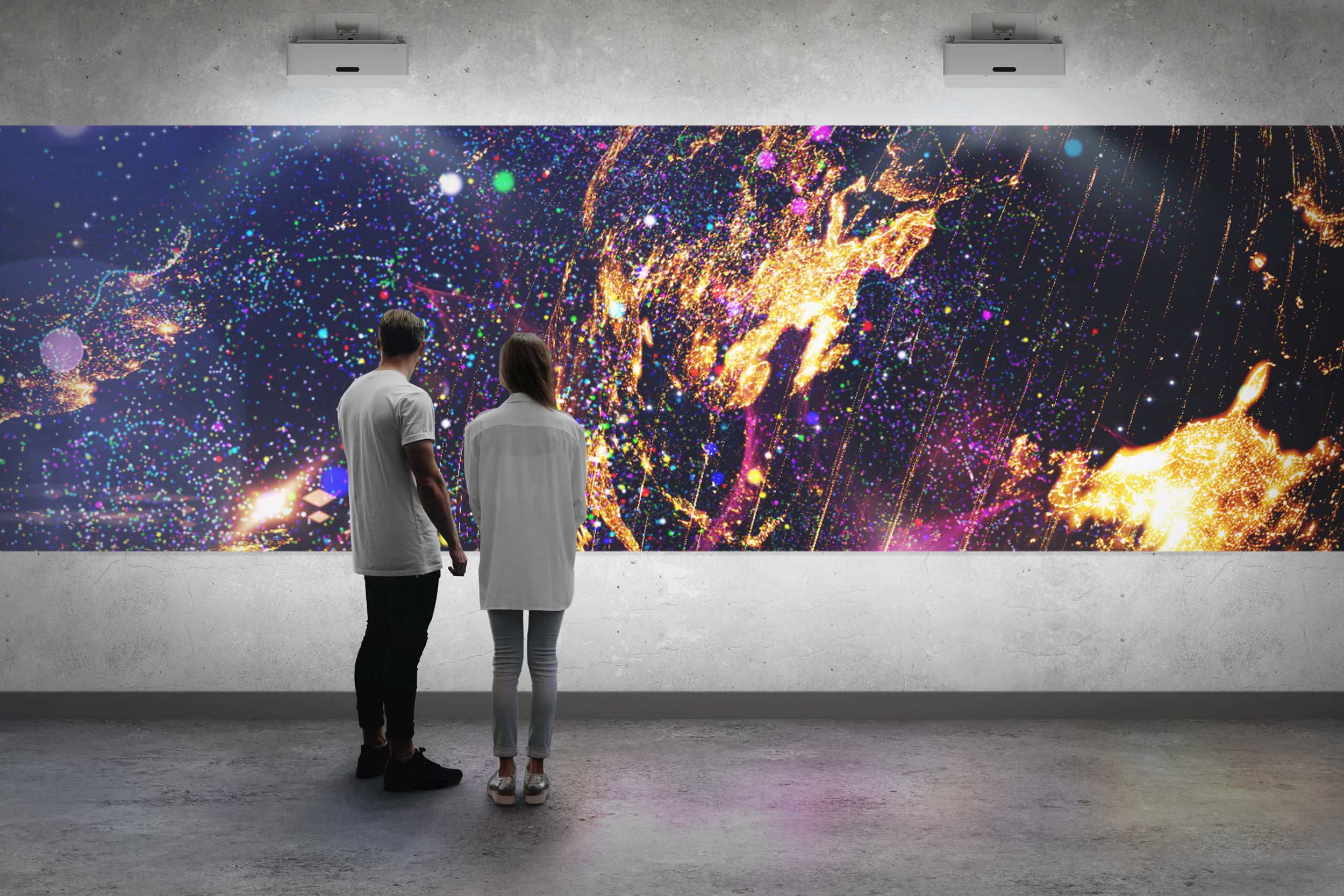

The projector's 360-degree flexible and its vertical rotation allows projection on ceilings, walls, or floors. Its portrait mode expands its uses for projection mapping, exhibitions, and advertising.

Brighter Performance

Under ambient lighting conditions, it still brings bright and full-of-life images, making it the perfect option for digital displays in public and commercial locations like museums, airports or shopping malls.

Integrated speaker

Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.

Compact and Reliable

Designed with simplicity in mind, Optoma dedicates to minimizing the product size and optimizing the component to be compact yet reliable enough for daily use.

Replace the thermal module with the heatsink.
The latest phosphor wheel is optimized from 54mm to 47mm compared to the previous-gen.
Remove the LVPS and replace it with an power adapter, which is easily to be repaired and replaced.

Dual HDMI inputs

With dual HDMI inputs, you can connect to different devices such as your set-top box, laptop, PC, Blu-ray player or media streamer easily by assigning them to different ports. There is no need for continuous plug or unplugging when switching devices, making presentation and display hassle-free. You can even turn it into a smart projector by connecting an HDMI dongle like Google Chromecast™, Amazon Fire TV, Apple TV™ or Roku® stick.

Optoma Management Suite™

A value-added solution, OMS provides IT administrators and technicians with an array of options to support daily operations, such as real-time monitoring of product performance so potential issues can be diagnosed and solved before they turn into failures. Additionally, users can broadcast or schedule alerts and messages across displays and remotely program and schedule device operating hours, reducing energy consumption and lowering operating costs.*

*OMS is an ever-evolving platform with features and functions being added over time. For the latest feature set please check with your local sales representative or check our [website](https://www.optoma.asia/product-details/oms).

Optoma DURACORE Made for Environmental Sustainability

Designed with environmental friendliness in mind, Optoma is dedicated to providing eco-friendly, cost-effective, and reliable products, that bring better experiences to people all around the world. With the future-proofed laser technology, our products are energy-saving, mercury-free, and more economical.

IP6X Airtight optical engine

Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

Eco-friendly laser light source

With the latest laser technology and higher power conversion efficiency, the product saves up to 47% of power consumption compared with a lamp-based projector at similar capacity

Mercury Free

High power consumption and mercury pollution in traditional lamp-based projectors are gradually replaced with more reliable, mercury-free, and eco-friendly lamp-free laser projectors.

Maintenance Free & Economical

Laser projectors are durable with up to 30,000 hrs. life span (eco) and 24/7 operation, which save cost on the lamp replacements, and has a long-term lifespan for any professional applications.

Designed with sustainability in mind - Optoma Green Badge

Optoma is a forerunner in green product design. Optoma’s SSI products take things a step further with sustainability incorporated into all aspects of a product, including design, production, packaging, and logistics. Optoma Green Badge represents Optoma’s commitment to sustainability. Our primary ways of lowering the environmental impact of our products are centered on four areas.

The use of environmentally friendly materials generate less waste

The use of environmentally friendly materials for products and during production.

According to UK Plastics Pack 2022, it takes 75% less energy to make a plastic bottle from recycled plastic than virgin materials. Our product design team works closely with suppliers to identify environmentally friendly recycled materials that minimize waste that would otherwise go into landfills and reduce the use of virgin plastics. Optoma is committed to producing SSI-based projectors that are made with 50 % post-consumer recycled (PCR) plastics.

Moreover, Optoma complies with WEEE, RoHS, and REACH regulations that restrict the use of hazardous substances during production, which helps protect landfills from permanent contamination.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Amazing colour

Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

360 projection*

Images can be projected over a 360° rangealong the projector’s horizontal axis.

*For more information please refer to the user manual

Portrait projection

Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

Quick start-up and shutdown

This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.

Low Noise: Quieter than a Whisper

Less than 30 dB in ECO mode.

Associated Accessories

WHD211

Specification

Display/image

Display technology

DLP™

Resolution

WXGA (1280x800)

Brightness

4,300 lumens

Contrast ratio

300,000:1

Contrast ratio - dynamic

2,000,000:1

Native aspect ratio

16:10

Aspect ratio - compatible

4:3,16:9,16:10

Keystone correction - horizontal

+/-5°

Keystone correction - vertical

+/-5°

Displayable colours (millions)

1073.4

Horizontal scan rate

15 ~ 140Khz

Vertical scan rate

24 ~ 120Hz

Uniformity

75%

Screen size

2.03m ~ 3.3m (80" ~ 130") diagonal

Lamp info

Light source type

DuraCore Laser

LASER life

30,000 hours

Optical

Throw ratio

0.266:1

Projection distance

0.18m - 0.47m

Focal length

-3.70mm

Connectivity

Connections

Inputs 2 x HDMI 1.4bOutputs 1 x USB-A power 1.5A, 1 x Audio 3.5mmControl 1 x RS232, 1 x RJ45

General

Noise level (min)

27dB

Noise level (max)

34dB

PC compatibility

UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac

3D compatibility

Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)

Full 3D

Security

Security bar, Kensington Lock, Password protected interface

IP rating

IP6X

OSD / display languages

25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese

24/7 operation

Yes

360° operation

Yes

Operating conditions

0°C~40°C, max altitude 10,000ft

Remote control

Card style

Heat dissipation

691BTU/hour

Speaker count

Watts per speaker
